Sonitus EM2030 Sound Level Monitor Kit- Class 1

OverStock - Geotechnical

Sonitus EM2030 Sound Level Monitor Kit- Class 1

  • Vendor:Sonitus Systems

Availability: Available Item
$5,400.00

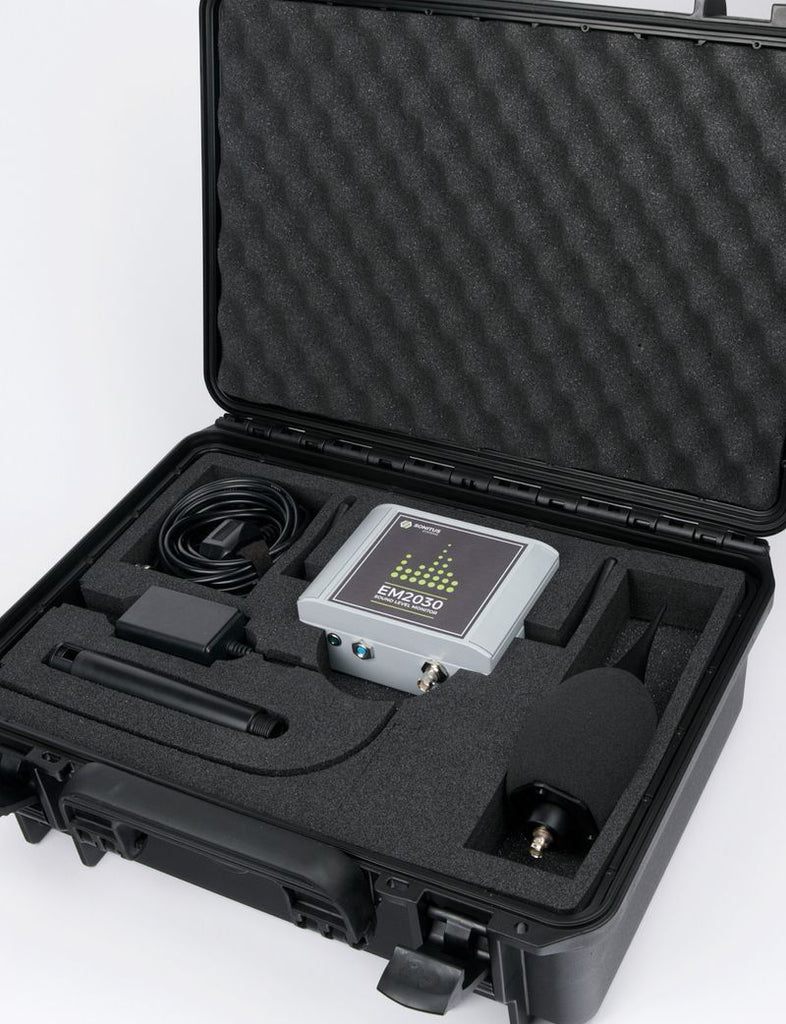

The EM2030 is intended for use in situations where you need reliable measurements with the minimum amount of effort.Just switch on the power to start monitoring and all readings will automatically be uploaded to our online reporting system.The EM2030 kit consists of a rugged measurement unit, weatherproof outdoor microphone, a microphone mounting stand with a cable and a mains power supply. Battery supply options are also available. System set up and configuration is over Wi-Fi link and can be done with a laptop, tablet or smart phone.
This is ideal for applications where access or safety are an issue, such as construction sites, industrial or road side installations. The EM2030 is supported by our powerful online analysis and reporting system which lets you access your sound level readings from anywhere.

  • Accurate to IEC 61672 Class 1
  • Measure LEQ, L05, L10, L50, L90, L95 and LMAX
  • A and C frequency weighting
  • Audio capture option
  • Frequency analysis option - 1/1 or 1/3 octaves
  • Fast and Slow time weighting
  • Flexible logging times from 1 to 30 minutes
  • Weatherproof microphone with heater option
  • Large memory for long-term data storage
  • Wi-Fi interface using web browser for easy configuration
  • Simple calibration
  • Automatic upload to secure cloud-hosted analysis system
  • Rugged design
Accuracy  IEC 61672 Class 1
Dynamic range 17 to 121dB(A)

Frequency range

20Hz to 20kHz

Sampling frequency

A and C weighting

Measurement parameters

LEQ, L05, L10, L50, L90, L95 and LMAX

Measurement period

1, 5, 10, 15 and 30 minute logging intervals

Data storage

5 years (at 5 minute intervals)

Microphone sensitivity

50mV/Pa

Microphone connection

BNC to BNC

Microphone power supply

Constant current ICP

Communications

802.11b/g Wi-Fi and 3G/4G cellular

Enclosure protection

IP65

Dimensions

110mm x 140mm x 60mm

Weight (full kit)

4kg

Operating temperature

-10°C to 50°C

Operating humidity

0% to 95% RH

Power input

110V to 240V AC

EM2030 power input

9V to 15V DC

Power consumption

2.4W
